Roller conveyor

  • Category:Roller conveyor

  • The number of clicks:
  • price:¥0
  • Release date:2018/10/12
  • Online Inquiry
Detailed introduction

滚筒自动生产流水线设备

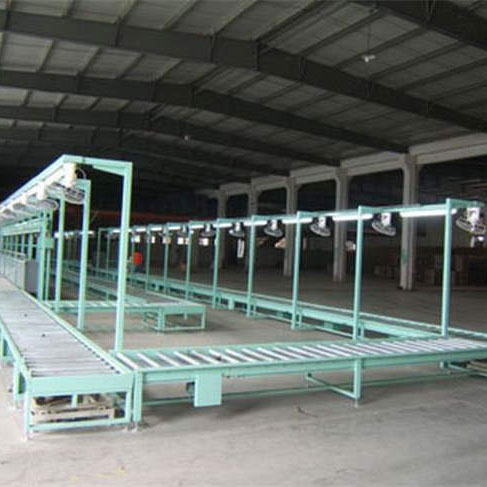

滚筒自动生产流水线

Features

It’s easy to make transition between roller conveyors, complex conveyor system can be formed by multiple roller lines and other conveying equipment or special planes

The roller conveyor is suitable for conveying the goods which the bottom is flat, and is mainly composed of driving drum, frame, bracket, driving device and so on. It has the characteristics of large conveying capacity, fast speed and running fast, which can realize multi-variety collinear split conveying.

Structural form: according to drive type, it has motor type, no motor type, electric roller, etc., according to layout form, it has horizontal conveying, inclined conveying and turning conveying.

Dimensions: The width of the roller conveyor is specified by the customer and can be made according to the customer's requirements. The standard radius of the turning and rolling line is 300, 600, 900, 1200mm, etc. Other special specifications can also be used according to customer requirements. The diameter of the drum used for the straight drum is 38, 50, 60, 76, 89 mm and the like. The taper of the turning roller will be designed according to the weight, shape and speed of the conveying object.

Frame material: carbon steel spray, stainless steel, aluminum profiles

Power: geared motor drive, electric roller drive, etc.

Transmission: single sprocket, double sprocket, O-belt, plane friction transmission belt, timing belt, multi-ribbed belt, etc.

Speed control mode: frequency control, stepless speed change, etc.

Transmission speed: up to 180m/min

Maximum load:

Multi-ribbed belt PJ: unit maximum 300KG

Multi-ribbed belt PK: unit maximum 2000KG

Chain: According to the strength of the chain, consult the manufacturer

Timing belt: According to the timing of the core material (wire, fiberglass, nylon), please consult the manufacturer.

O belt: unit maximum 30KG
