Function and characteristics

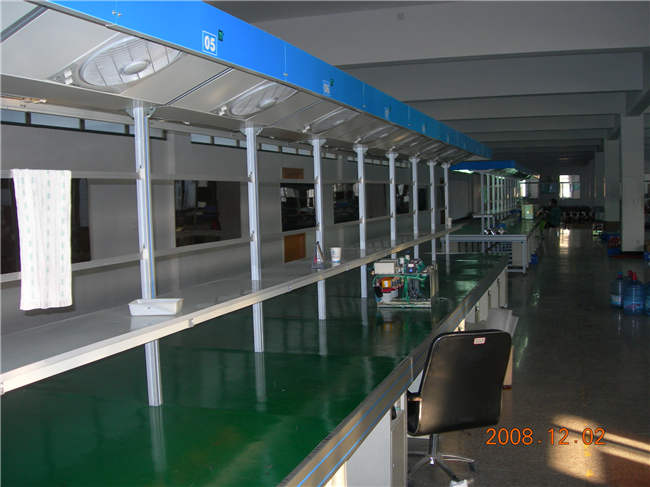

Simple structure, convenient maintenance, beautiful appearance and reliable operation, and is widely used in the transportation of spare parts assembly in industries such as electronics, home appliances, food, automobiles and motorcycles.

Technical Parameters:

1. The main conveying forms are: strip workbench, independent workbench, unilateral workbench, bilateral workbench and no workbench transport form.

2. The form of the drive is: By motor.

3. The belt width is usually 20~2000mm, and can also be customized according to customer requirements.

4. The material of the conveyor belt is: rubber belt, PVC belt, canvas belt, food belt, etc.

5. Conveyor belts are available in the form of baffle conveyor belts, slats, flat belts and anti-slip belts.

6. The size of the workbench is set according to the user.

7. The work surface has: fireproof board, ordinary rubber, anti-static rubber lamp.

8. Belt line brackets are: stainless steel, aluminum profiles, sprayed carbon steel and so on.

9. The conveying speed is generally 0.1~10M/min; the speed regulation or constant can be selected according to the user's needs.

10. Speed regulation: frequency control, electromagnetic speed regulation, electronic speed regulation, mechanical speed regulation, etc.

11. Belt frame material: carbon steel, stainless steel, aluminum profile
